Pure R05200 Tantalum tube 99.95%

Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:	1 Kilogram
Delivery Time:	10 Days

Contact Now

Basic Info

Model No.: SYMT-tantalum Ro5200 tube

Additional Info

Packaging: wooden case

Productivity: 1ton/month

Brand: SYMT

Transportation: Ocean,Land,Air

Place of Origin: Shaanxi, China

Supply Ability: 10 Tons per Month

Certificate: ISO9001

Port: Beijing,Shanghai

Product Description

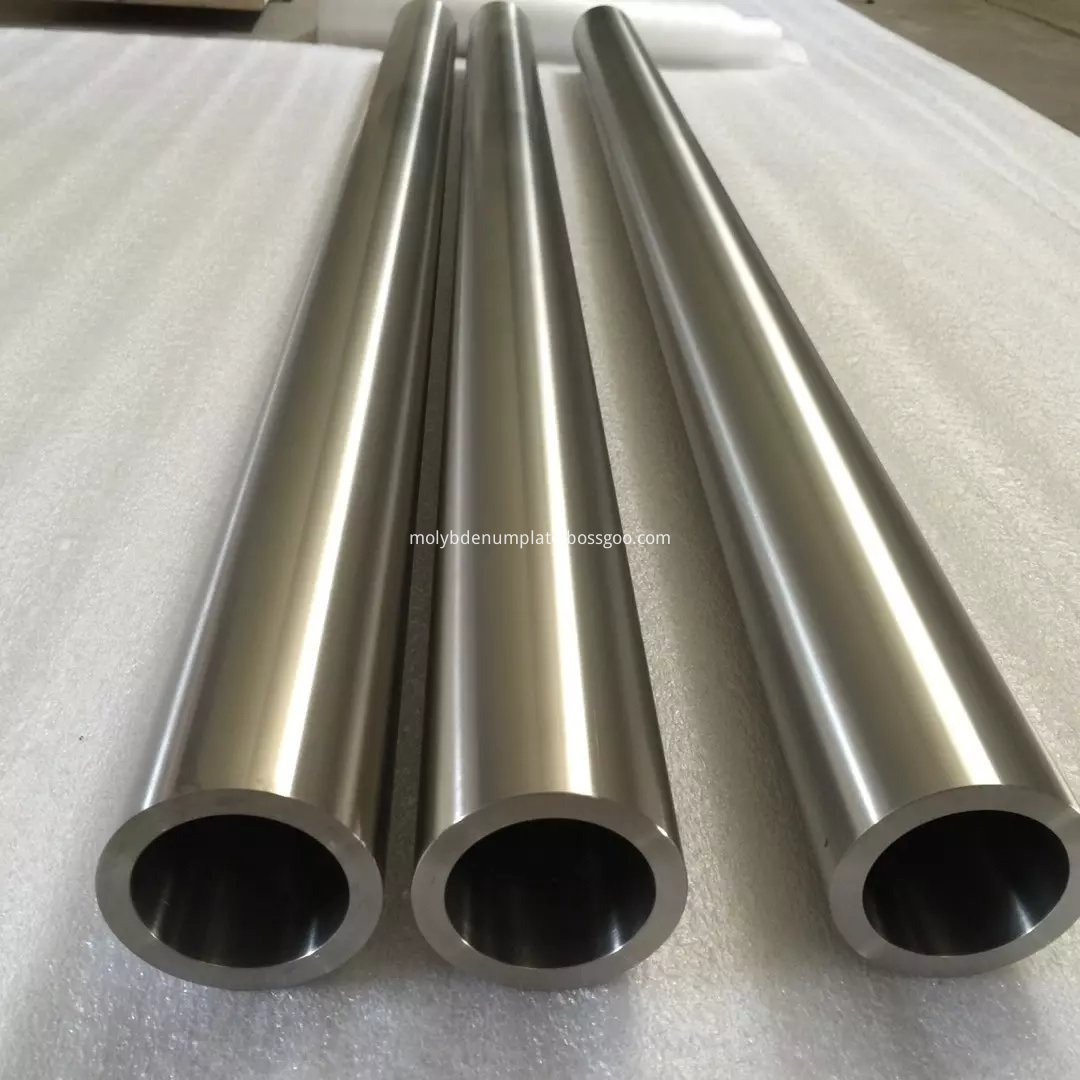

Pure R05200 Tantalum tube 99.95%

The Tantalum tube is made of high purity tantalum material, which also have some good features , such as Low Density and High Strength, Excellent Corrosion Resistance, Good resistance to effect of heat, Excellent Bearing to cryogenic property, Nonmagnetic and Non-toxic, Good thermal properties, Low Modulus of Elasticity.

99.95% RO5255 Tantalum Tube

Tantalum Seamless Tube, Tantalum Alloy Tube, Tantalum Pipe, Tantalum Capillary Tube, Tantalum Tubing

1. Standard: ASTM B521
2. Grade:R05200, R05400, Ta1, Ta2.5W, Ta10W
3. Density 16.6 g/cc

4. Certificate: ISO9001 IS14001

Table1. Permissible variations in diameter & wall thickness

Outside diameter, inch (mm)	Diameter tolerance, inch(mm), +/-	Permissible variaton in wall thickness, %, +/-
<1 (25.4)	0.004 (0.102)	10
1~1.5 (25.4~38.1)	0.005 (0.127)	10
1.5~2 (38.1~50.8)	0.006 (0.152)	10
2~2.5 (50.8~63.5)	0.007 (0.178)	10
2.5~3.5 (63.5~88.9)	0.008 (0.254)	10

Table 2. Mechanical requirements (annealed condition)

Grade	Tensile strength δbpsi (MPa), ≥	Yield strength δ0.2, psi (MPa),≥	Elongation in 1"/2" gage length, %, ≥
RO5200/RO5400	30000 (207)	20000 (138)	25
RO5252	40000 (276)	28000 (193)	20
RO5255	70000 (481)	60000 (414)	15
RO5240	40000 (276)	28000 (193)	20

Chemical compositions

Material chemical composition ♦

Designation	Chief component	Impurities max(%)
Designation	Ta	Fe	Si	Ni	W	Mo	Ti	Nb	O	C	H	N
Ta1	Remainder	0.004	0.003	0.002	0.004	0.004	0.002	0.03	0.015	0.004	0.0015	0.002
Ta2	Remainder	0.01	0.01	0.005	0.02	0.02	0.005	0.08	0.02	0.01	0.0015	0.01

Mechanical properties

Table 2. Mechanical requirements (annealed condition)

Grade	Tensile strength δbpsi (MPa), ≥	Yield strength δ0.2, psi (MPa),≥	Elongation in 1"/2" gage length, %, ≥
RO5200/RO5400	30000 (207)	20000 (138)	25
RO5252	40000 (276)	28000 (193)	20
RO5255	70000 (481)	60000 (414)	15
RO5240	40000 (276)	28000 (193)	20

Tantalum tube permissible variations in diameter & wall thickness:

Outside diameter, inch (mm)	Diameter tolerance, inch(mm), +/-	Permissible variation in wall thickness, %, +/-
<1 (25.4)	0.004 (0.102)	10
1~1.5 (25.4~38.1)	0.005 (0.127)	10
1.5~2 (38.1~50.8)	0.006 (0.152)	10
2~2.5 (50.8~63.5)	0.007 (0.178)	10
2.5~3.5 (63.5~88.9)	0.010 (0.254)	10

3. Application:

Tantalum and tantalum alloy(Ta-2.5W, Ta-10W, Ta-40Nb) tubes have the advantages, such as high melting point, corrosion-resistant, facilely-processed in cold environment. They are widely applied in the chemical industry, high temperature technology field and atomic energy industry to build reaction container and heat exchanger, pipe, condensator, clip heater, helix loop, U-pipe in the chemical courses, thermocouple and its protective pipe, liquid state metal container and pipe.

4. Advantage of our Ta tube

-polished surface with high quality.
- uniform grain with densified microstructure ensures longer use time.
- precise machining tolerance.

-professional after-sales service

5. Package details

First packaging with moisture-proof paper

Second packaging with Kraftpaper

Third packaging with foam plastics in all side of plywood case.

Finally packing products in plywood case

Pure 99.95% Tantalum Tube R05200 Tantalum Tube Pure R05200 Tantalum Tube
